DATASHEET:
Overview

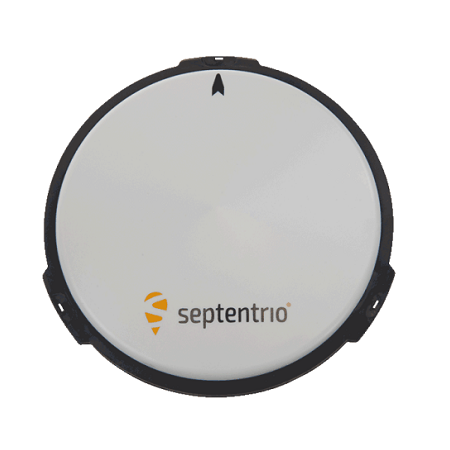

The Septentrio PolaNt-x MF.v2 is a lightweight high-precision GNSS for marine, geodetic, survey and machine control applications. This high-gain antenna incorporates low-noise amplifiers, enabling multi-frequency GNSS signal reception and are built into a rugged and environmentally sealed housing.
The PolaNt-x MF.v2 antenna has an optimized ground plane design, providing excellent multipath characteristics.
Enabling the tracking of the upper and lower (1539- 1615 Mhz, 1164-1295 Mhz) GNSS signals, the PolaNt-x MF.v2 is ideal for high precision applications.
Features
- Multi-constellation tracking: GPS, Galileo, GLONASS, BeiDou, NavIC and QZSS
- Reception of Inmarsat L-Band signals compatible with correction services
- Superior multipath characteristics
- Ruggedized design
Technical Specifications
| GNSS Signals | |
| GPS: | L1, L2, L5 |
| GLONASS: | L1, L2, L3 |
| BeiDou: | B1, B2, B3 |
| Galileo: | E1, E5a, E5b, E6 |
| SBAS: | L1, L5 |
| NavIC: | L5 |
| QZSS: | L1, L2, L5, L6 |
| L-Band: | MSS |
| Frequency: | 1539 – 1615 MHz, 1164 – 1295 MHz |
| Amplifier | |
| Gain: | 39 ± 2 dB |
| Noise Figure: | 2.6 dB max |
| Input Voltage: | +3 to +15 VDC |
| Current: | 65mA (typ) |
| Impedance: | 50 Ω |
| VSWR: | ≤ 2.0:1 |
| Physical | |
| Weight: | 450 g/0.99 lbs |
| Diameter: | 190 mm/7.50 in |
| Connector: | N-Type Female |
| Polarization: | RHCP |
| Axial Ratio: | 3 dB max |
| Environment | |
| Operating Temperature: | -50 °C to +70 °C, -58°F to 158°°F |
| Certification: | CE, RoHS, WEEE |
Ordering
The Septentrio PolaNt-x MF.v2 GNSS antenna is available through TerrisGPS. Please feel free to contact us using the Request Pricing form if you would like more information about it.
