DATASHEET:
Overview

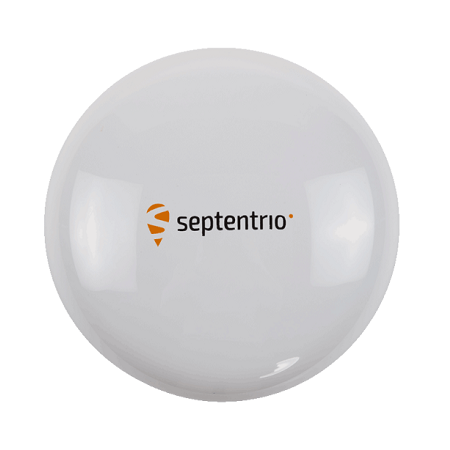

The Septentrio PolaNt* MC.v2 is a lightweight, sturdy high precision geodetic multi-frequency multi-constellation antenna for use in physically demanding applications. This antenna is compatible with the PolaRx/AsteRx family of high performance multiple-frequency GNSS receivers. The PolaNt* MC.v2 incorporates a low-noise amplifier, and is built into a rugged and environmentally sealed housing with aluminum bottom plate.
The PolaNt* MC.v2 antenna allows for the reception of augmentation services distributed via L-band, making it particularly suited for use in machine control application in combination with Septentrio AsteRx products.
Features
- Multi-constellation, multi-frequency GPS, Galileo, GLONASS and BeiDou signals capable
- Reception of Inmarsat L-Band signals compatible with Fugro correction services
- Ruggedized design
Technical Specifications
Technical Specifications
| GNSS Frequencies | |
| GPS: | L1, L2, L5 |
| GLONASS: | L1, L2, L3 |
| BeiDou: | B1, B2, B3 |
| Galileo: | E1, E5a, E5b, E6 |
| SBAS: | L1, L5 |
| NavIC: | L5 |
| QZSS: | L1, L2, L5, L6 |
| L-Band: | MSS |
| Amplifier | |
| Gain: | 39 ± 2 dB |
| Noise Figure: | 2.6 dB max |
| Input Voltage: | +3 to 15 VDC |
| Current: | 65 m A (typ) |
| Impedance: | 50 Ω |
| VSWR: | ≤ 2.0:1 |
| Physical | |
| Weight: | ≈ 500 g/1.1 lb |
| Diameter: | 146 mm/5.74 in |
| Connector: | TNC Female |
| Polarization: | RHCP |
| Axial Ratio: | 3 dB max |
| Environment | |
| Operating Temperature: | -55°C to +85°C, -67°F to +185°F |
| Designed To: | DO-160D |
| Certification: | CE, RoHS, WEEE |
Ordering
The Septentrio PolaNt* MC.v2 antenna can be ordered through TerrisGPS. Please feel free to get in touch with us using the Request Pricing form if you would like more information.
